900 Series Tube Expander: Versatile Sizing and Rolling Options for Tube Expansion

Choose the Right Tool for Your Tube Expansion Needs

Download Datasheet

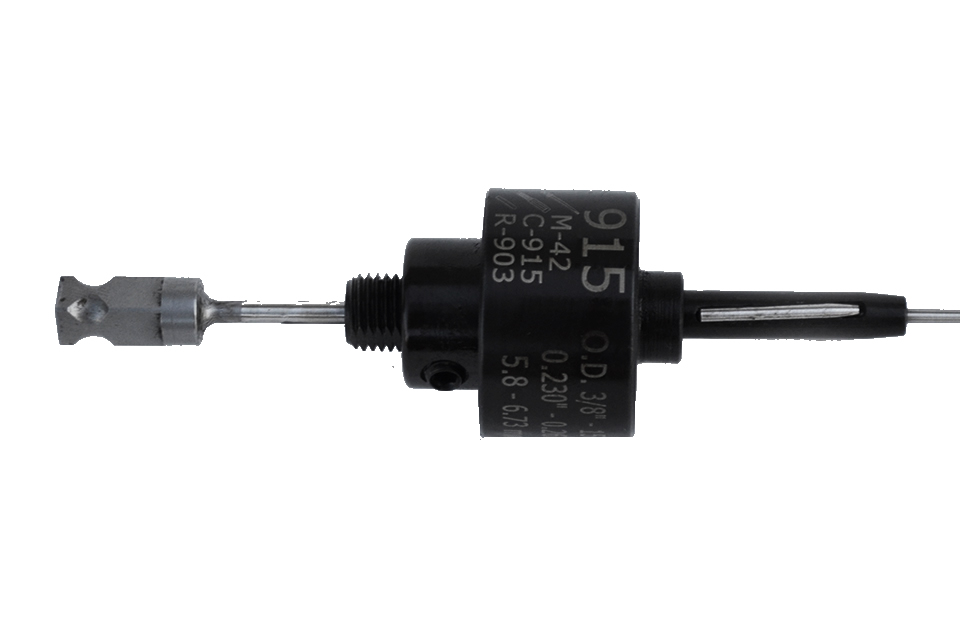

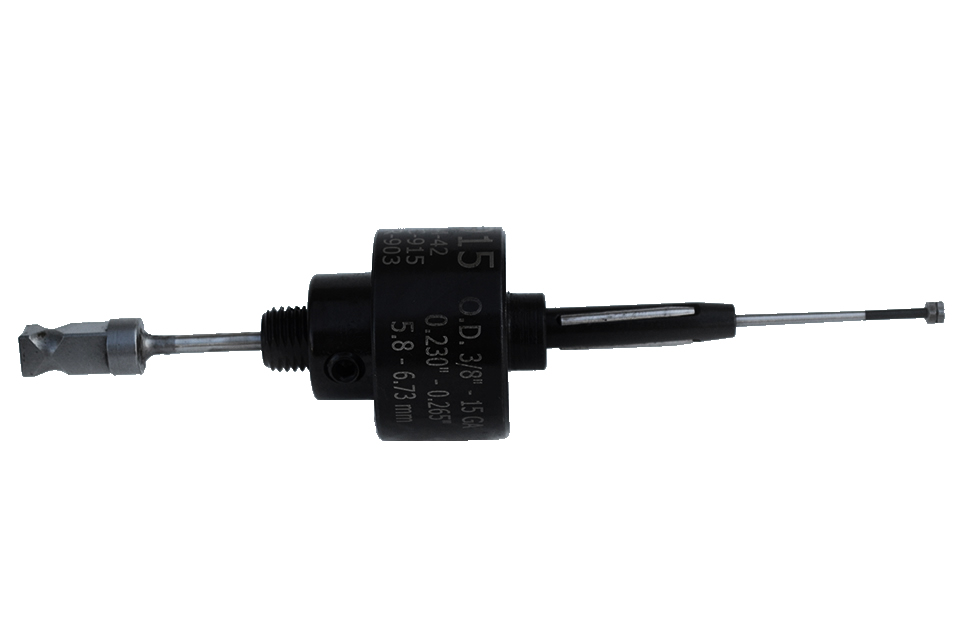

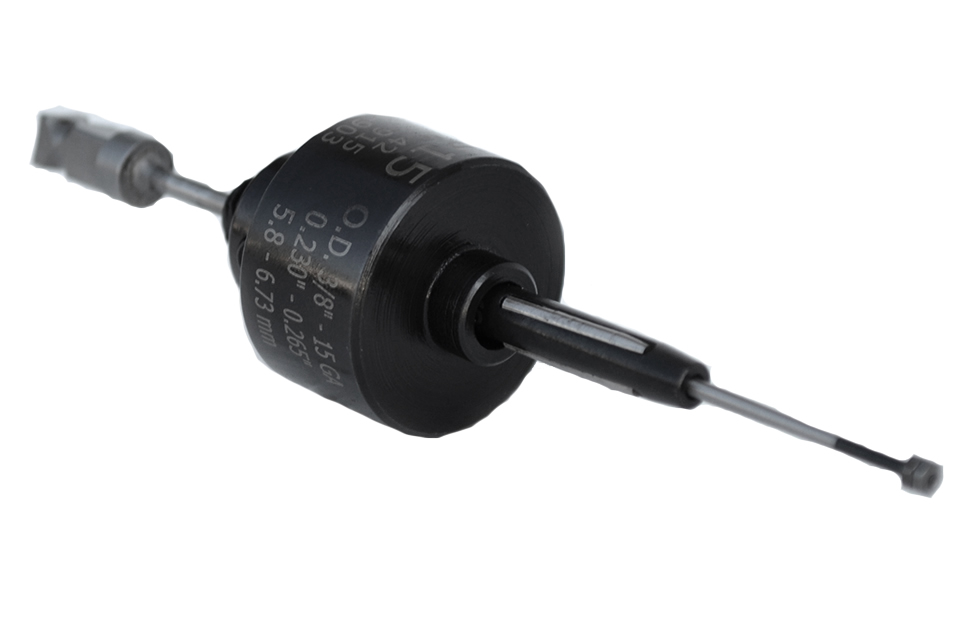

The 900 series tube expander is a versatile tool designed for expanding tubes in various applications. Its product range covers tube sizes from 6.35mm (¼") OD up to 9.53mm (3/8") OD. It is available with 19mm (¾") or 32mm (1 ¼") roll lengths for tube sheet thicknesses ranging from 3.18mm (1/8") to 29mm (1.14"). The 900 series tube expander offers adaptability and precision, making it an ideal choice for efficiently and effectively expanding tubes.



TUBE GAUGE

TUBE I. D.

MIN. EXPANSION

MAX. EXPANSION

TUBE SHEET THICKNESS

MANDREL

MANDREL
SQUARE

1/2" to 1-1/2"

1-1/4" to 2-1/4"

12.7 to 38.1 mm

31.7 to 57.1mm


[bwg]

[inch]

[mm]

[inch]

[mm]

[inch]

[mm]

[inch]

[mm]

Tool No.

Roll No.

Tool No.

Roll No.

[inch]

1/4"

6.35

mm

18

0.049

1.24

0.152

3.86

0.151

3.84

0.173

4.39

TR921

TRR921

–

–

TRM-39

1/4”

1/4"

6.35

mm

19

0.042

1.07

0.166

4.22

0.165

4.19

0.185

4.70

TR922

TRR923

–

–

TRM-39

1/4”

1/4"

6.35

mm

20

0.035

0.89

0.180

4.57

0.175

4.45

0.200

5.08

TR923

TRR923

–

–

TRM-40

1/4”

1/4"

6.35

mm

21

0.072

1.83

0.186

4.72

0.180

4.57

0.207

5.26

TR924

TRR924

–

–

TRM-40

1/4”

1/4"

6.35

mm

22

0.028

0.71

0.194

4.93

0.190

4.83

0.216

5.49

TR925

TRR925

–

–

TRM-41

1/4”

1/4"

6.35

mm

23

0.025

0.64

0.200

5.08

0.195

4.95

0.222

5.64

TR926

TRR923

–

–

TRM-41

1/4”

1/4"

6.35

mm

24

0.022

0.56

0.206

5.23

0.201

5.11

0.230

5.84

TR927

TRR924

–

–

TRM-41

1/4”

3/8"

9.53

mm

14

0.022

0.56

0.206

5.23

0.201

5.11

0.230

5.84

TR927

TRR924

–

–

TRM-41

1/4”

3/8"

9.53

mm

15

0.072

1.83

0.231

5.87

0.230

5.84

0.265

6.73

TR915

TRR903

–

–

TRM-42

1/4”

3/8"

9.53

mm

16

0.065

1.65

0.245

6.22

0.240

6.10

0.275

6.99

TR916

TRR916

TR916L

TR916L

TRM-36

1/4”

3/8"

9.53

mm

17

0.058

1.47

0.259

6.58

0.255

6.48

0.289

7.34

TR918

TRR903

TR920

TR904

TRM-38

1/4”

3/8"

9.53

mm

18

0.049

1.24

0.277

7.04

0.272

6.91

0.307

7.80

TR901

TRR903

TR902

TR904

TRM-30

1/4”

3/8"

9.53

mm

19

0.042

1.07

0.291

7.39

0.286

7.26

0.320

8.13

TR903

TRR903

TR904

TR904

TRM-31

1/4”

3/8"

9.53

mm

20

0.035

0.89

0.305

7.75

0.300

7.62

0.334

8.48

TR905

TRR907

TR906

TR908

TRM-32

1/4”

3/8"

9.53

mm

21

0.032

0.81

0.311

7.90

0.306

7.77

0.340

8.64

TR907

TRR907

TR908

TR908

TRM-33

1/4”

3/8"

9.53

mm

22

0.028

0.71

0.319

8.10

0.314

7.98

0.349

8.86

TR909

TRR909

TR910

TR910

TRM-34

1/4”

3/8"

9.53

mm

23

0.025

0.64

0.325

8.26

0.320

8.13

0.357

9.07

TR911

TRR911

TR912

TR912

TRM-34

1/4”

3/8"

9.53

mm

24

0.022

0.56

0.331

8.41

0.319

8.10

0.357

9.07

TR911

TRR911

TR912

TR912

TRM-34

1/4”
